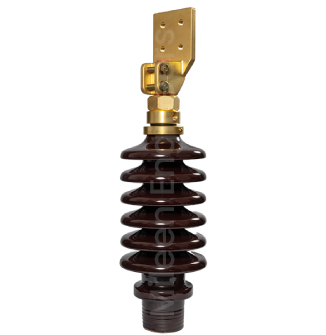

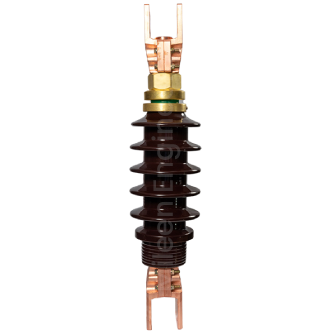

Mileen manufacturer's High current (HC) solid porcelain open type Bushings design in accordance to DIN42541 /EN 50243 standard and comply with IEC 60137. These bushings are majorly used in Generator Transformer & large power transformers at low-voltage end in indoor or outdoor applications. The HC bushing has a very sturdy design and is extremely reliable under any critical operation. Over the years, we have improved the quality and process for this product and now it has become very cost effective and value for money along with very low cost to maintain. We can also offer customization to meet specific requirements of the customers. The product is now largely used and has been very well accepted by the customers and the industry in general.
| Bushing Type | Um Maximum Voltage[kv] | Ir Rated Current[A] | Related Standard |
|---|---|---|---|
| High Current | 12 | 4500 | In-house Design & DIN42541 / EN 50243 |
| 6300 | |||
| 24 | 4500 | ||
| 6300 | |||
| 8000 | |||
| 36 | 4500 | ||
| 6300 | |||
| 8000 | |||
| 10000 | Special design | ||
| 12500 |
