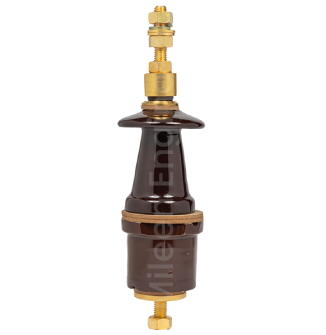

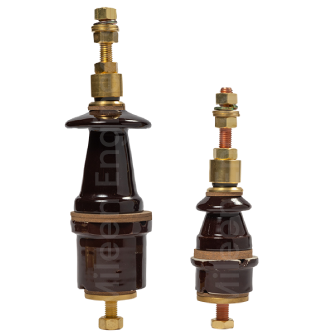

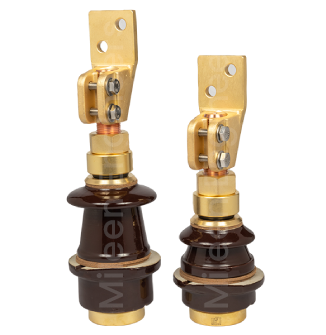

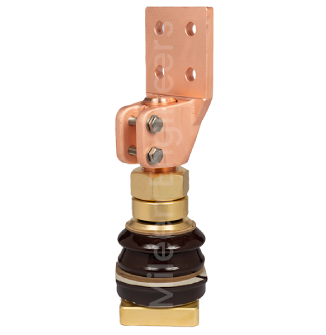

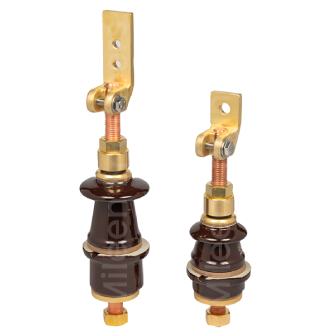

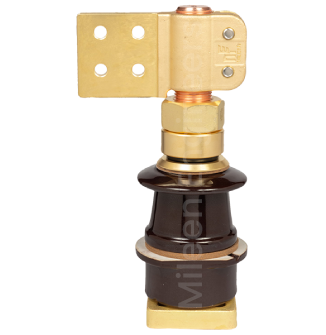

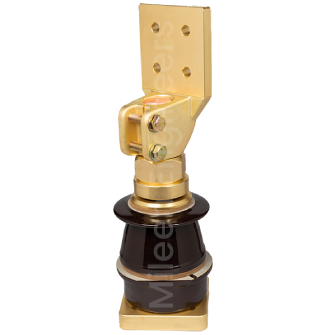

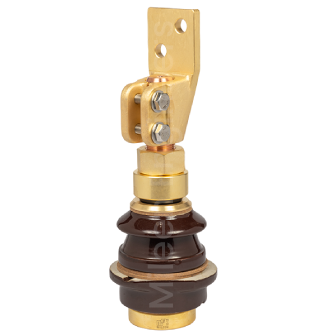

Porcelain BushingsLV Range (upto 3kV)

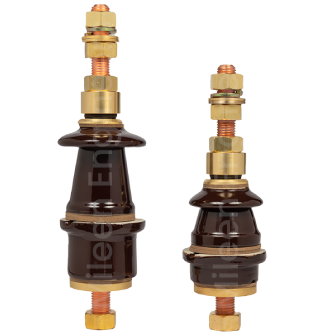

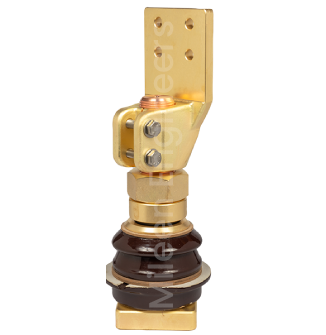

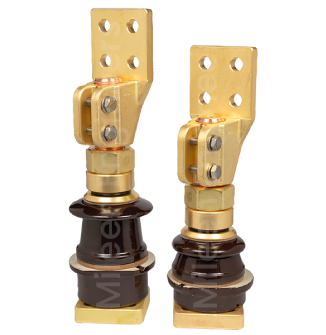

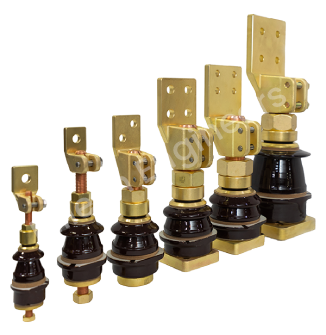

Mileen manufacturer's low voltage (LV) range of Solid Porcelain Bushings designed in accordance with DIN 42530 / EN 50386 , DIN 42539 & IS 3347 and comply with IEC 60137. These bushings are primarily used for indoor and outdoor applications in the field of Distribution & traction oil filled transformers. This bushings are available in several designs and can be customized to fit almost any kind of customer requirement upon request (i.e. Special Connecting flags, special hardware or Gasket material, Tin Platting etc.)

Technical data at a glance:
1.1- 3.6 kV
250 to 6300 A
from 60 mm up to 140 mm
Porcelain (Brown)
DIN, EN and IS standards.
Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt
Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt Alt
Product Information:
Bushing Type Um Maximum Voltage[kv] Ir Rated Current[A] Related Standard
Low Voltage 1.1
250
630
1000
2000
3150
 DIN 42530/
EN 50386 & IS3347 PI
3.6
250
630
1000
2000
3150
DIN 42539
& IS3347 P2
4500
6300
